0571-85820082伺服电机控制器解决方案
项目描述
近年来，随着我国工业的迅速发展，伺服驱动技术应用的领域也越来越多，如缝纫机、传送带、电梯、自动旋转门、自动开窗、封口机、灌装机械、机床制造等行业都有广泛应用，目前国内伺服驱动器的缺口还比较大，可以说是供不应求，市场潜力巨大。伺服驱动器逆变部分主要功率器件有MOS,IGBT,IPM等，发展趋势是IGBT、IPM占主导。
产品特色
→先进的加工工艺；
→较低的器件饱和压降和关断损耗；
→产品一致性好，性能稳定。

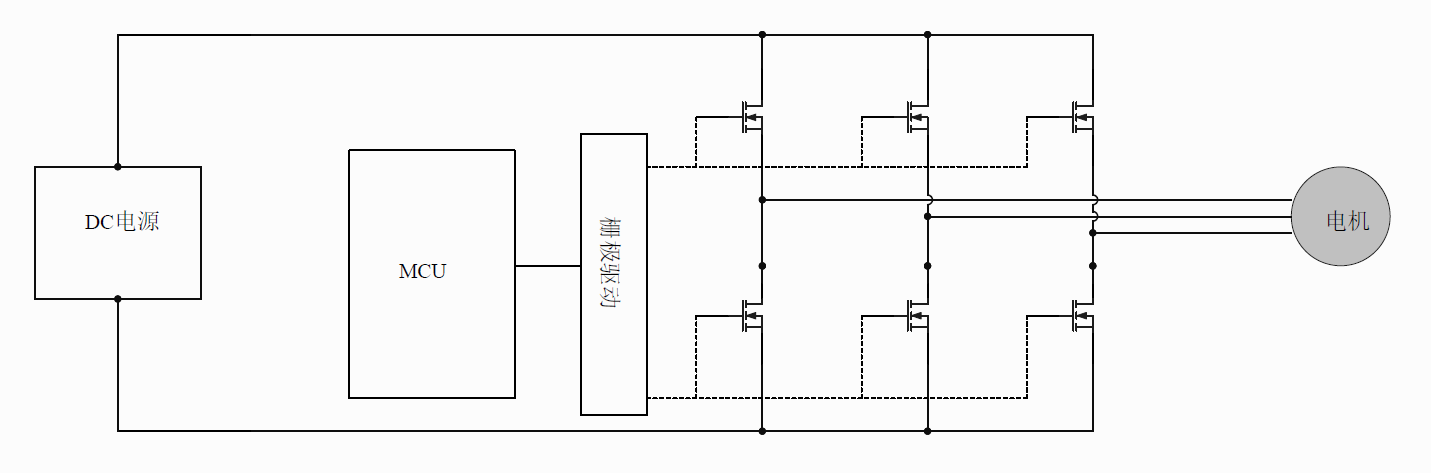

应用原理图

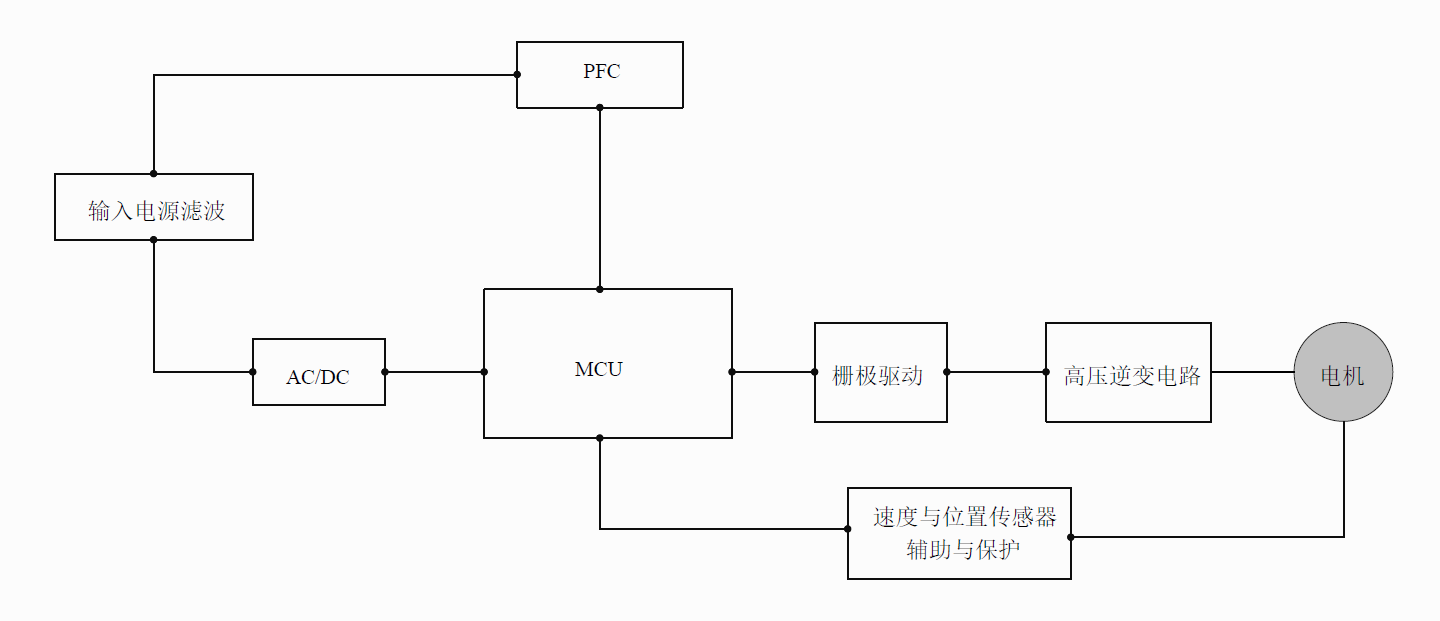

应用拓扑结构图
应用选型推荐
| 产品名 | 封装 | Configuration | Category | Thermal Interface | ID/IC | VDS/VCE | VTS | OTP | OCP | FO | SD |
| （A） | （V） | ||||||||||
| SOP-23A | MOSFET | 3-phase full bridge | Plastic-Coating | 2 | 500 | Y | - | - | - | - | |
| DIP-23E | MOSFET | 3-phase full bridge | Plastic-Coating | 2 | 500 | Y | - | - | - | - | |
| SOP-23A | MOSFET | 3-phase full bridge | Plastic-Coating | 4 | 500 | Y | - | - | - | - | |
| DIP-23E | MOSFET | 3-phase full bridge | Plastic-Coating | 4 | 500 | Y | - | - | - | - | |
| CRMT5004E1 | SOP-23A | MOSFET | 3-phase full bridge | Plastic-Coating | 6 | 500 | Y | - | - | - | - |
| DIP-23E | MOSFET | 3-phase full bridge | Plastic-Coating | 6 | 500 | Y | - | - | - | - | |
| SOP-23A | MOSFET | 3-phase full bridge | Plastic-Coating | 1 | 600 | Y | - | - | - | - | |
| DIP-23E | MOSFET | 3-phase full bridge | Plastic-Coating | 1 | 600 | Y | - | - | - | - | |
| SOP-23A | MOSFET | 3-phase full bridge | Plastic-Coating | 3 | 600 | Y | - | - | - | - | |
| DIP-23E | MOSFET | 3-phase full bridge | Plastic-Coating | 3 | 600 | Y | - | - | - | - | |
| SOP-23A | MOSFET | 3-phase full bridge | Plastic-Coating | 5 | 600 | Y | - | - | - | - | |
| DIP-23E | MOSFET | 3-phase full bridge | Plastic-Coating | 5 | 600 | Y | - | - | - | - | |
| SOP-23A | IGBT+FRD | 3-phase full bridge | Plastic-Coating | 6 | 600 | Y | - | - | - | - | |
| DIP-23E | IGBT+FRD | 3-phase full bridge | Plastic-Coating | 6 | 600 | Y | - | - | - | - | |
| QFN7x7 | MOSFET | half-bridge | Plastic-Coating | 2 | 500 | Y | - | - | - | - | |
| QFN7x7 | MOSFET | half-bridge | Plastic-Coating | 4 | 500 | Y | - | - | - | - | |
| QFN7x7 | MOSFET | half-bridge | Plastic-Coating | 6 | 500 | Y | - | - | - | - | |
| QFN7x7 | MOSFET | half-bridge | Plastic-Coating | 1 | 600 | Y | - | - | - | - | |
| QFN7x7 | MOSFET | half-bridge | Plastic-Coating | 3 | 600 | Y | - | - | - | - | |
| QFN7x7 | MOSFET | half-bridge | Plastic-Coating | 5 | 600 | Y | - | - | - | - | |
| DIP-24B | IGBT+FRD | 3-phase full bridge | DBC | 10 | 600 | Y | Y | Y | Y | - | |
| DIP-24B | IGBT+FRD | 3-phase full bridge | DBC | 15 | 600 | Y | Y | Y | Y | - | |
| DIP-24B | IGBT+FRD | 3-phase full bridge | DBC | 20 | 600 | Y | Y | Y | Y | - | |
| DIP-24B | IGBT+FRD | 3-phase full bridge | DBC | 30 | 600 | Y | Y | Y | Y | - | |
| DIP-24L | IGBT+FRD | 3-phase full bridge | Plastic-Coating | 10 | 600 | Y | Y | Y | Y | - | |
| DIP-24L | IGBT+FRD | 3-phase full bridge | Plastic-Coating | 15 | 600 | Y | Y | Y | Y | - | |
| DIP-25A | MOSFET | 3-phase full bridge | Plastic-Coating | 3 | 600 | - | Y | Y | Y | Y | |
| CRM60GK06E3 | DIP-25A | IGBT+FRD | 3-phase full bridge | Plastic-Coating | 6 | 600 | - | Y | Y | Y | Y |
| DIP-25A | IGBT+FRD | 3-phase full bridge | Plastic-Coating | 10 | 600 | - | Y | Y | Y | Y |
