0571-85820082空气炸锅解决方案
应用描述
随着人们生活水平日益增加，人们对食品多样性的追求也随之提高。为满足当下食品烹饪多样性的需求，贝诚推出了一系列可靠、高效的可控硅产品。其中三象限双向可控硅拥有较高的 dv/dt 能力，抗电磁干扰能力强。可以承受较大电流的冲击，三象限双向可控硅比较适用于电感型负载。多种封装形式如TO-220AB、TO-252、TO-263等可满足终端应用小尺寸外形的需求。
产品特色
→较高的 dv/dt 能力
→产品参数一致性好
→抗电流冲击能力强
→高可靠性

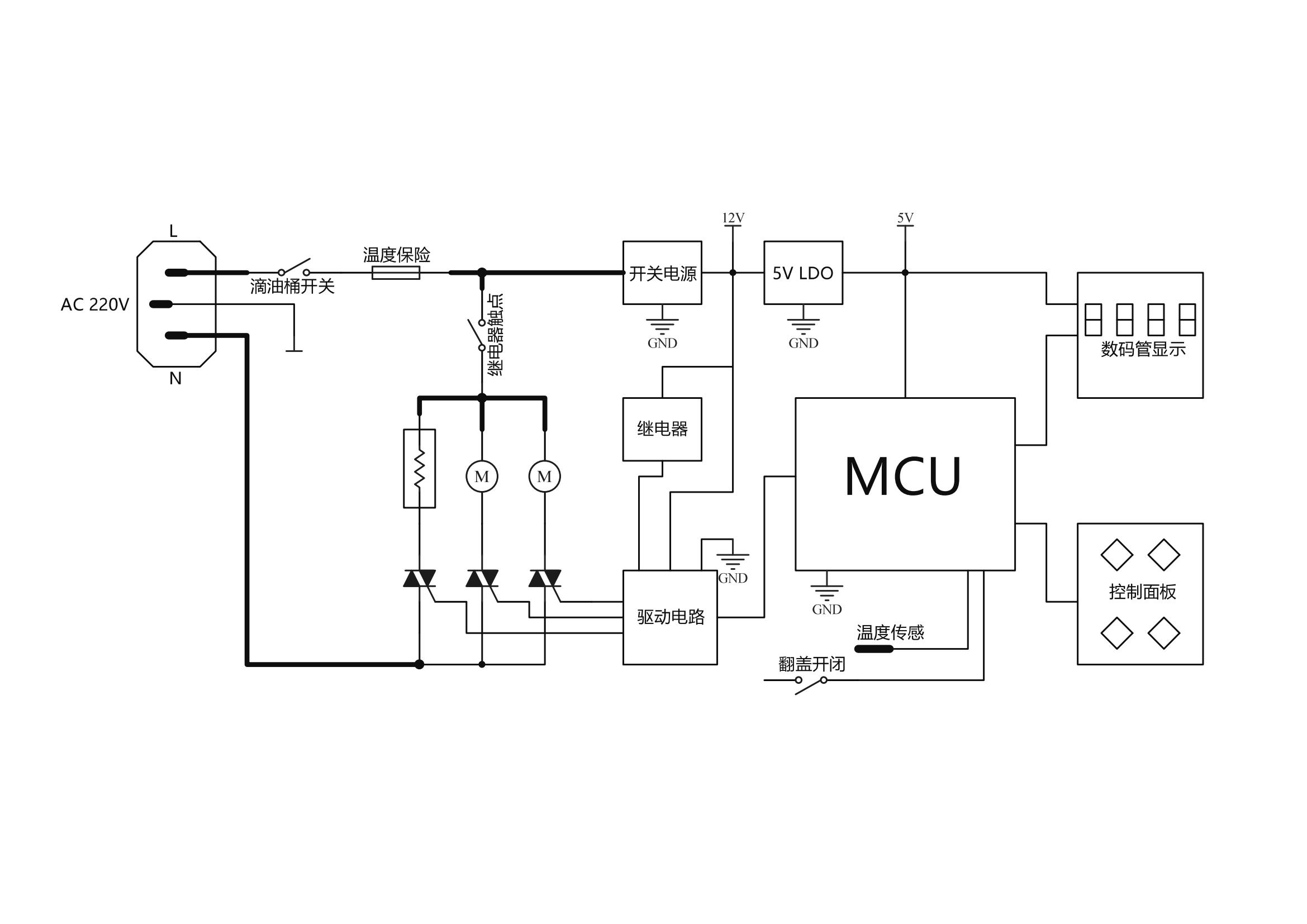

空气炸锅原理图

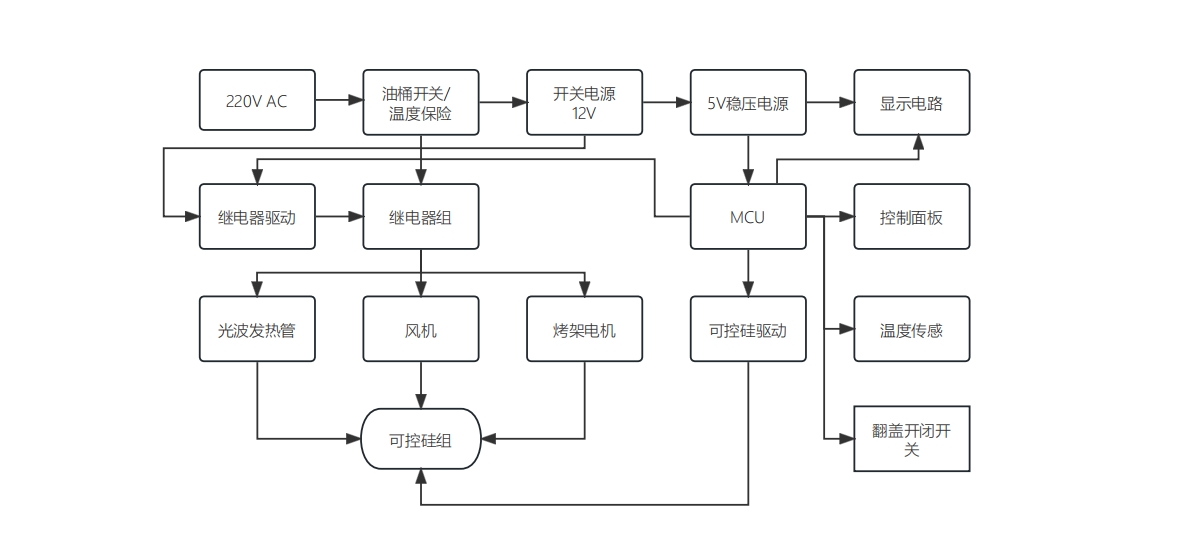

空气炸锅拓扑图
应用选型推荐
| 可控硅 | |||||
| TYPE | 规格书 | IT(RMS)(A) | IGT3(mA) MAX | VDRM/VRRM(V) | Packsge |
| MAC97A6 | 1 | 5 | 600/600 | TO-92 | |
| MAC97A8 | 1 | 5 | 700/700 | TO-92 | |
| BT137 | 8 | 5/10/25 | 600/800 | TO-220B TO-220C TO-251 TO-252 TO-220F | |
| BT138 | 12 | 5/10/25 | 600/800 | TO-220B TO-220C TO-263 TO-220F | |
| BT139 | 16 | 5/10/25 | 600/800 | TO-220B TO-220C TO-263 TO-220F | |
| BTA08 | 8 | 5/10/35/50 | 600/800 | TO-220A TO-220F | |
| BTA12 | 12 | 5/10/35/50 | 600/800 | TO-220A TO-220F | |
| BTA16 | 16 | 5/10/35/50 | 600/800 | TO-220A TO-220F | |
| BTA20 | 20 | 35/50 | 600/800 | TO-220A TO-220F | |
| BTA41 | 40 | 50 | 600/800/1200/1600 | TO-3P | |
| BTB08 | 8 | 5/10/35/50 | 600/800 | TO-220B TO-220C TO-252 TO-251 | |
| BTB12 | 12 | 5/10/35/50 | 600/800 | TO-220B TO-220C TO-263 | |
| BTB16 | 16 | 5/10/35/50 | 600/800 | TO-220B TO-220C TO-263 | |
| BTB20 | 20 | 35/50 | 600/800 | TO-220B TO-220C TO-263 | |
| 离线式降压稳压器 | ||||||||
| 型号 | 规格书 | MOSFET BV (V) | RDSON(Ω) | 输出电流(mA) | 输出电压 (V) | 开关频率 (kHz) | 待机功率 (mW) | 封装 |
| JW1530 | 700 | 15 | 200 | 5 | 30 | <30 | SOT23-3 | |
| JW15307 | 待上传 | 700 | 15 | 200 | 5 | 30 | <30 | SOP8 |
| JW1532N5 | 650 | 30 | 150 | 5 | 40 | <30 | SOP8 | |
| JW1532M5 | 650 | 25 | 300 | 5 | 40 | <30 | SOP8 | |
| JW1532A5 | 650 | 13 | 450 | 5 | 40 | <30 | SOP8 | |
| JW1531O | External | External | 2000 | 3~150 | - | <150 | SOP8 | |
| JW1531B | 500 | 5 | 600 | 3~150 | - | <75 | SOP7 | |
| JW1531M | 500 | 15 | 250 | 3~150 | - | <50 | SOP7 | |
| JWB1536NC | 500 | 20 | 200 | 3.3 | 30 | <30 | ASOP7 | |
| JWB1536AC | 500 | 17 | 300 | 3.3 | 30 | <30 | ASOP7 | |
| JW1536NC | 500 | 20 | 200 | 3.3 | 30 | <30 | SOP7 | |
| JW1536AC | 待上传 | 500 | 14 | 450 | 3.3 | 30 | <30 | SOP7 |
| JW1532A | 650 | 13 | 300 | 12/18 | 65 | <30 | SOP8 | |
| JW1532B | 650 | 5 | 450 | 12/18 | 65 | <30 | SOP8 | |
| JW1532AL | 500 | 10 | 300 | 12/18 | 65 | <30 | SOP8 | |
| JW1532BL | 500 | 5 | 450 | 12/18 | 65 | <30 | SOP8 | |
| JW15328A | 650 | 13 | 400 | 12 | 65 | <30 | DIP7 | |
| JW15328B | 650 | 5 | 550 | 12 | 65 | <30 | DIP7 | |
| JW15329A | 待上传 | 650 | 13 | 350 | 18 | 65 | <30 | DIP7 |
| JW15329B | 650 | 5 | 500 | 18 | 65 | <30 | DIP7 | |
| JW1581A | 待上传 | 650 | None | 40 | 5 | 线性 | <30 | SOP8 |
| 触摸MCU | ||||||||||||||
| P/N | ROM | RAM | GPIO | ADC 12-bit | TOUCH KEY | Timer | PWM | STACK | FIRC(MHz) | Max. Freq.(Hz) | Operating Voltage | Package | ||
| SIZE | TYPE | TYPE | TK | |||||||||||
| TM56F1552 | 4K*16 | Flash + EEP128 | 336 | 18 | 14+3-ch | CTK | 15-ch | 8-bit*2 15-bit*1 | 16bit (N/P) /16-bit*5-ch | 8 | 16/8/4/2 | 85K~20M | 1.9~5.5 | SOP-16/20,QFN/TSSOP-20 |
| TM56F1543 | 8K*16 | Flash + EEP128 | 496 | 26 | 14+1-ch | STK | 24-ch | 8-bit*215-bit*1 | 16bit (N/P) /16-bit*5-ch | 8 | 18/9/4.5/2.25 | 8K~18M | 2.15~5.5 | SSOP/SOP-28/20/16 |
| TM56M1522 | 4K*16 | MPT | 256 | 14 | 13+2-ch LDOC 1.2V | — | — | 8-bit*2 15-bit*1 | 16-bit*6 | 8 | 16/8/4/2 | 85K~16M | 1.8~5.5 | SOP-16/8,MSOP-10,QFN-16 |
| TM56ME6422 | 4K*16 | MPT+ EEP128 | 256 | 18 | 14+2-ch | — | — | 8-bit*2 15-bit*1 | 16-bit*6 | 8 | 16/8/4/2 | 85K~16M | 2.0~5.5 | SOP-16/8,MSOP-10,SOT23-6 |
| TM52FN8276 | 16K | Flash | 256+768 | 26 | 16-ch (14+2) | FTK | 19-ch | 16-bit*3 15-bit/T3 | (8+2)bit*3 | — | — | — | 2.2~5.5 | SOP-28/20/16 SSOP-24/28 |
| TM52eF1375A | 32K | Flash | 256+1024 | 26 | 15-ch (13+2) | FTK | 20-ch | 16-bit*3 15-bit/T3 | 16-bit*3 | — | — | — | 2.5~5.5 | SOP-28/20 |
