0571-85820082直流电动工具-有刷解决方案
项目描述
电动工具产品可以有效的减少人力劳动量，降低劳动强度，使手工工作机械化，从而使得工作效率提高，因此电动工具被广泛应用于生活的各方面。电动工具随处可见，如电钻、电锯、切割机、角磨机等应用范围十分广泛，包括机械工业、建筑装潢、园林绿化、木业加工、金融加工等。中国作为最大发展中国家，电动工具也因此被划入先进装备制造业范畴，市场需求相当巨大，前景持续向好。
电动工具逐渐由直流有刷电机升级为直流无刷电机，对MOS的体积、RDS(ON)、QG等参数要求也越来越高。
产品特色
→较低的FOM值、EAS性能好，抗短路能力强
→Trench ll MOS平台成熟稳定，产品性价比高
→电压从-20V~60V多个电压段可供选择
→有PDFN3.3*3.3、PDFN5*6、TO-252等多种封装可选择，满足电动工具不同外形需求

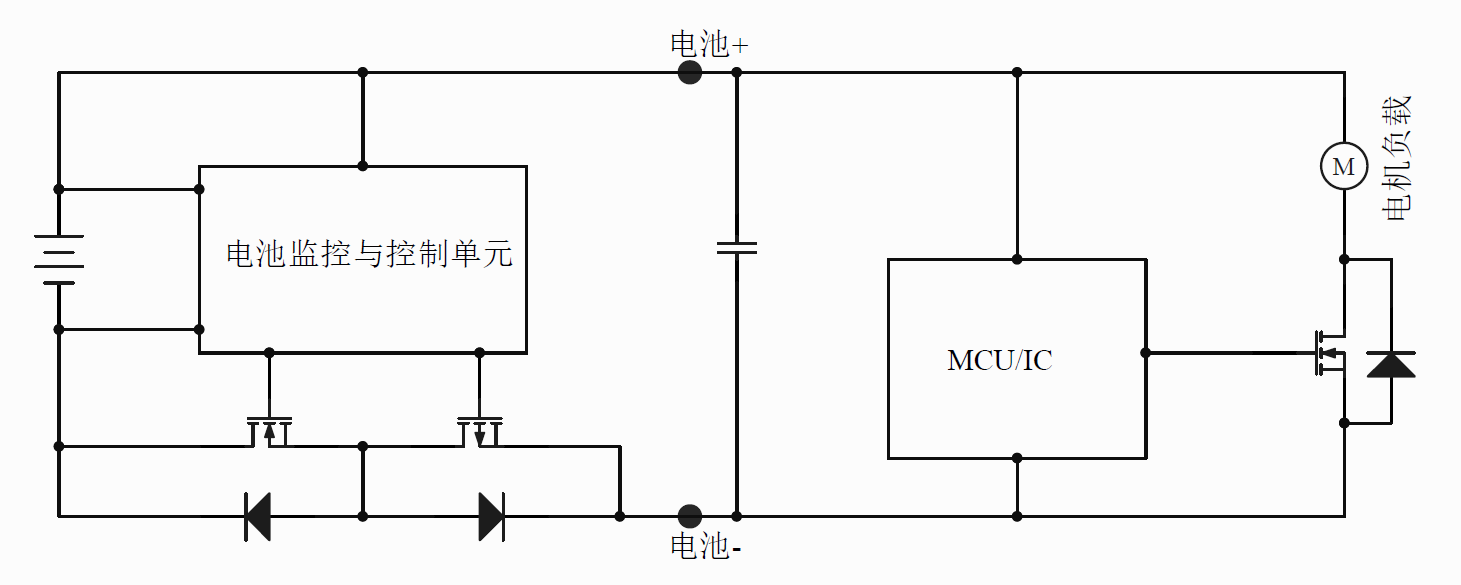

应用原理图

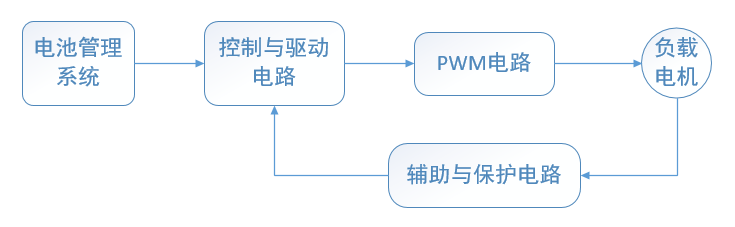

应用拓扑结构图
应用选型推荐
| 耐压 | 型号 | 规格书 | 封装 | 开启电压（V） | 电流（A） | 内阻（mΩ） | |||
| VGS=10V（MAX） | VGS=10V（type） | VGS=4.5V（TYPE） | VGS=4.5V（MAX） | ||||||
| 60V | EK60NF06 | TO-220 | 2.0-4.0 | 60 | 10 | 15 | - | - | |
| EK65NF06 | TO-220 | 2.0-4.0 | 60 | 10 | 15 | - | - | ||
| CRTS045N06N | TO-263 | 2.4-3.6 | 120 | 3.3 | 4.5 | - | - | ||
| CRTD105N06L | TO-252 | 1.3-2.3 | 64 | 8.5 | 10.5 | 10.5 | 12.5 | ||
| SLD80N06T | TO-220 | 2.0-4.0 | 80 | 6.1 | 8.5 | - | - | ||
| SLM80N06T | DFN5X6 | 2.0-4.0 | 80 | 6.1 | 8.5 | - | - | ||
| SLP120N06T | TO-220 | 2.0-4.0 | 120 | 4.3 | 6.7 | - | - | ||
| SLB150N06T | TO-263 | 2.0-4.0 | 150 | 2.7 | 3.3 | - | - | ||
| SLP150N06T | TO-220 | 2.0-4.0 | 150 | 2.8 | 3.5 | - | - | ||
| SLM150N06G | DFN5X6 | 2.0-4.0 | 150 | 1.8 | 2.6 | - | - | ||
| SLP150N06G | TO-220 | 2.0-4.0 | 150 | 2.4 | 3 | - | - | ||
| CRTD105N06L | TO-252(或DPAK) | 1.0-3.0 | 64 | 8.5 | 10.5 | 10.5 | 12.5 | ||
| CS70N06A4 | TO-252(或DPAK) | 1.0-3.0 | 70 | 7.2 | 10 | 8.5 | 13 | ||
| CRSD100N06L2 | TO-252(或DPAK) | 1.0-3.0 | 79 | 8.2 | 9.8 | 11.1 | 13.9 | ||
| CRSD046N06N2 | TO-252(或DPAK) | 2.0-4.0 | 80 | 3.3 | 4.1 | - | - | ||
| CRST100N06L2 | TO-220 | 1.0-3.0 | 80 | 8.4 | 10.1 | 11.5 | 14.4 | ||
| CRTD085N06N2-G | TO-252(或DPAK) | 2.0-4.0 | 85 | 6.5 | 8.3 | ||||
| CS100N06A8 | TO-220 | 2.0-4.0 | 100 | 6.5 | 8.5 | ||||
| CS100N06D4 | TO-252(或DPAK) | 1.0-3.0 | 100 | 6.5 | 10 | 9.1 | 12 | ||
| CS100N06D8 | TO-220 | 1.0-3.0 | 100 | 6.5 | 10 | 9.1 | 12 | ||
| CS100N06A4 | TO-252(或DPAK) | 2.0-4.0 | 100 | 5.4 | 6.5 | ||||
| CS110N06A8-2 | TO-220 | 2.0-4.0 | 110 | 6 | 8 | ||||
| CRTS045N06N | TO-263(或D2PAK) | 2.0-4.0 | 120 | 3.3 | 4.5 | ||||
| CRTT045N06N | TO-220 | 2.0-4.0 | 120 | 3.3 | 4.5 | ||||
| CS120N06A0 | TO-263(或D2PAK) | 2.0-4.0 | 120 | 5.4 | 6.5 | ||||
| CS120N06C8 | TO-220 | 2.0-4.0 | 120 | 5.4 | 6.5 | ||||
| CRTT056N06N | TO-220 | 2.0-4.0 | 123 | 4.2 | 5.6 | ||||
| CRTF056N06N | 待上传 | TO-220F | 2.0-4.0 | 123 | 4.2 | 5.6 | |||
| JMTC035N06D | TO220C/TO263 | 2.0-4.0 | 3.3 | 4.3 | |||||
| JMTC060N06A | TO220C/TO252 | 2.0-4.0 | 4.2 | 6 | |||||
| JMTK80N06A | TO220/TO252 | 2.0-4.0 | 5.4 | 6.6 | |||||
| JMTC110N06A | TO220/TO252 | 2.0-4.0 | 8 | 14.5 | |||||
| JMTK50N06B | TO-252 | 1.0-3.0 | 12 | 15 | 14 | 21 | |||
| JMTE070N07A | TO263/TO252 | 2.0-4.0 | 5.8 | 7.5 | |||||
| JMTC6888A | TO220C/TO263 | 2.0-4.0 | 7.2 | 9.4 | |||||
| JMTC068N07A | TO220/TO263/TO252 | 2.0-4.0 | 6.1 | 7.9 | |||||
| P/N | 规格书 | ROM | RAM | GPIO | OPA/CMP | ADC 12-bit | Timer | PWM | Package | |
| Size | Type | |||||||||
| TM56M1522 | 4K*16 | MTP | 256 | 14 | 7-bit DAC CMP/ | LDOC 1.2V 13+2-ch | 8-bit*2 /15-bit*1 | 16-bit*6 | SOP-16/8 MSOP-10 QFN-16 | |
| P/N | 规格书 | CORE CPU | ROM | bytes RAM | EEPROM bytes | GPIO | Touch Key | Timer/ RTC | ||
| Size | Type | Type | TK | |||||||
| TM52FN8276 | F51 | 16K | Flash | 256+768 | EEP/128 | 26 | FTK | 19-ch | 18-bit/T3 16-bit*3 | |
| TM52F4974 | F51 | 16K | Flash | 256+1280 | EEP/128 | 26 | AFTK | 23-ch | 24-bit/T3 16-bit*3 | |
| P/N | 规格书 | ROM | bytes RAM | EEPROM bytes | GPIO | max. LCD | Timer/ RTC | PWM | Package | |
| Size | Type | |||||||||
| TM52F1363 | 8K | Flash | 256+256 | EEP/128 | 26 | 1/2 bias 4 com | 15-bit/T3 16-bit*3 | PWM0~6 16-bit*7 | SOP/QFN-28 | |
